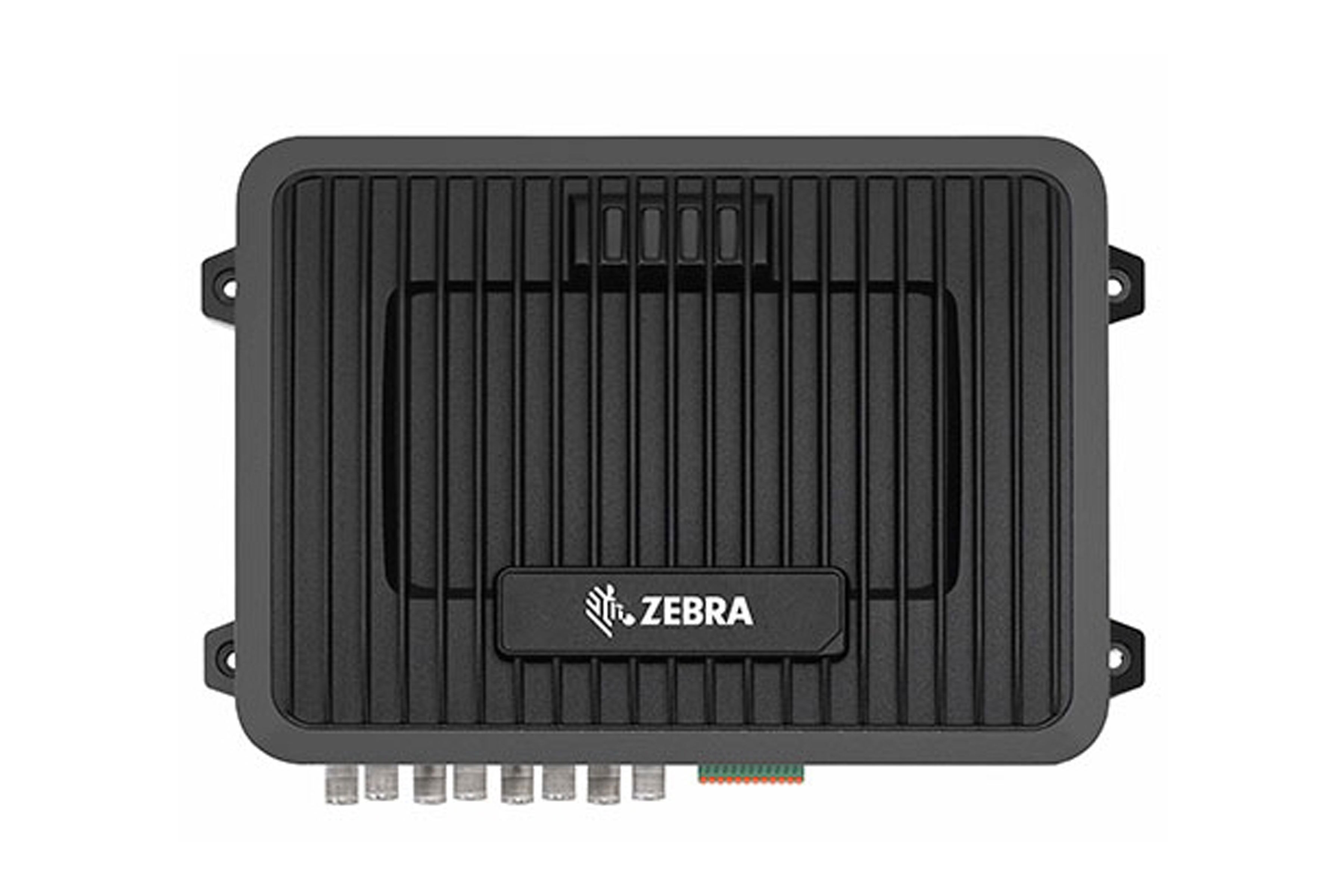

RFID Reader Zebra 9600

RFID Reader Zebra 9600

Specifications

Physical Characteristics

Dimensions10.75 in. L x 7.25 in. W x 2.0 in. D
27.3 cm L x 18.4 cm W x 5.0 cm D
WeightApprox. 4.4 lbs/2.13 kg
Housing MaterialDie-cast aluminum, meets IP53 standards
Visual Status IndicatorsMulticolor LEDs: Power, Activity, Status and Applications

RFID Characteristics

Max Receive Sensitivity-86 dBm monostatic
Air ProtocolsISO 18000-63 (EPC Class 1 Gen 2 V2)
Frequency (UHF Band)Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz
US (only) Reader: 902 - 928 MHz
Transmit Power Output0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply

Connectivity

Communications10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)
General Purpose I/O4 inputs, 4 outputs, optically isolated (Terminal Block)
Power SupplyPOE (802.3af)
POE+ (802.3at) +24V DC
(UL Approved)
Antenna PortsFX9600-4: 4 monostatic ports; (Reverse Polarity TNC)
FX9600-8: 8 monostatic ports; (Reverse Polarity TNC)

Environmental

Operating Temp.-4° to +131° F/-20° to +55° C
Storage Temp.-40° to +158° F/-40° to +70° C
Humidity5-95% non-condensing
SealingIP53

Hardware, OS and Firmware Management

ProcessorTexas Instruments AM3505 (600 MHz)
MemoryFlash 512 MB; DRAM 256 MB
Operating SystemLinux
Firmware UpgradeWeb-based and remote firmware upgrade capabilities
Management ProtocolsRM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP
Network ServicesDHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
Network StackIPv4 and IPv6
SecurityTransport Layer Security Ver 1.2, FIPS-140
API SupportHost Applications — .NET, C and Java EMDK
Embedded Applications — C and Java SDK

Regulatory Compliance

SafetyUL 60950-01, UL 2043, IEC 60950-1, EN 60950-1
RF/EMI/EMCFCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3 For Malaysia: 919-923 MHz
SAR/MPEFCC 47CFR2:OET Bulletin 65; EN 50364
OtherROHS, WEEE

Environmental Compliance

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
For a complete list of product and materials compliance, please visit
www.zebra.com/environment

Warranty

The FX9600-4 and FX9600-8 are warranted against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions. For complete warranty statement, go to:
www.zebra.com/warranty

Recommended Services

Support ServicesZebra OneCare™; On-Site System Support
Advanced ServicesRFID Design and Deployment Services

Footnotes

*Configurations without a USB hub require an external USB hub for
full USB functionality
Specifications are subject to change without notice.
    ₹121,000.00Price
    Excluding Sales Tax

    Free Shipping
